一、The Role of Pin Contacts in Data Cables

Pin contacts are the core interface components responsible for signal and power transmission in data cables, and their design directly affects:

• ⚡Charging Efficiency and Current Carrying Capacity

• 📶 Data Transmission Stability and Speed

• 🔁 Insertion and Removal Life Cycle and Contact Reliability

• 🔥 Contact Resistance and Heat Generation Control

二、Structural Differences of Pin Contacts in Common Connector Types

1️⃣ USB Type-A / Type-C Connectors

Type-A（USB 2.0）

• 4 Pin Structure

  • VBUS (Power Supply)

  • D+

  • D-

  • GND

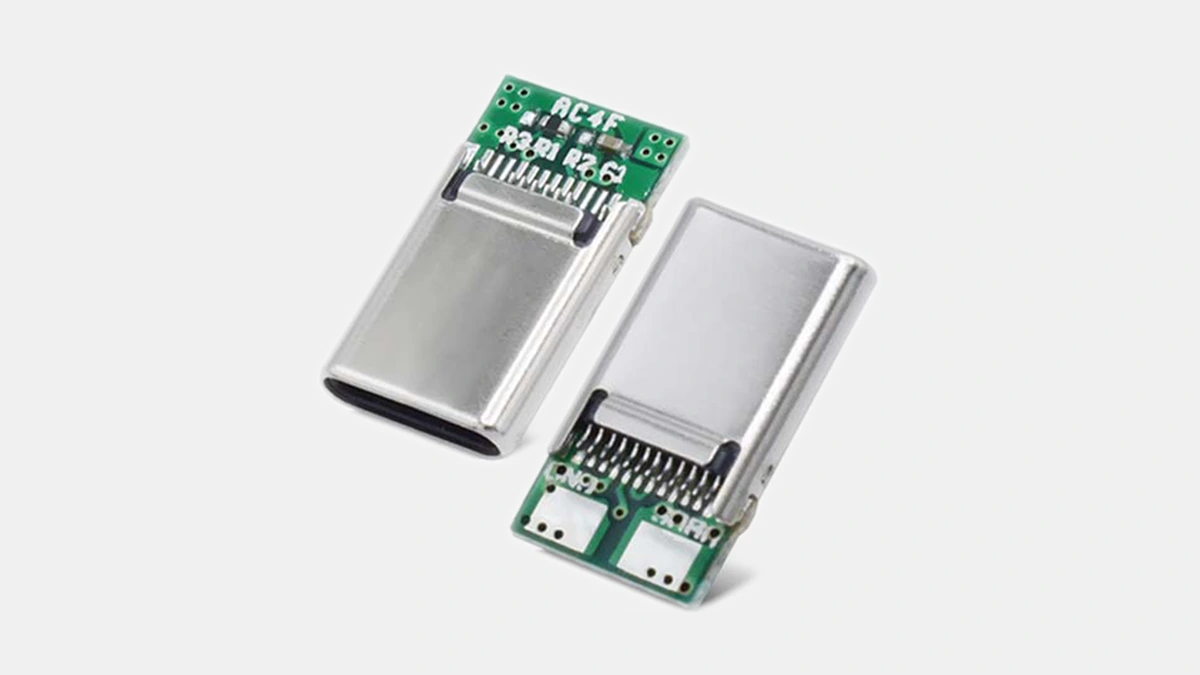

Type-C（USB-C）

• 24 Pin Symmetrical Design

• Supports Reversible Insertion

• Functions Include:

  • Power (VBUS / GND)

  • High-Speed Differential Pair

  • CC Channel

  • SBU Auxiliary Channel

👉 Key Points of High-Power Fast Charging Cables:
VBUS and GND typically use multiple pins in parallel to increase current carrying capacity and reduce localized heating.

2️⃣Lightning Connector (Apple)

• 8 Pin Dual-Sided Contact Design

• The connector internally uses an IC chip for function identification.

• Soldering of Pin Contacts to FPC or PCB

三、Selection of Pin Contact Materials (Key Parameters)

1️⃣ Base Material

2️⃣ Surface Plating

The plating has a significant impact on the lifespan and contact performance.

👉 Standard Practice:

Nickel Underlayer + Gold Surface (Ni + Au) Composite Plating Structure

四、Key Points in Pin Contact Structural Design

1️⃣ Contact Type

• Spring Contact ✅ 主流

• Rigid Contact ❌ Not suitable for frequent plugging/unplugging

The spring contact structure provides stable contact pressure, reducing the risk of poor contact.

2️⃣ Contact Force

• Too low → Unstable contact

• Too high → Difficult to plug/unplug, accelerated wear

📌 Typical Industry Control Range:
0.4 – 1.2 N / Pin

3️⃣ Pin Arrangement and Pitch

• High-speed signal PIN require matched length and uniform spacing.

• Strictly control impedance consistency.

• Prevent crosstalk and signal reflection.

五、High-Power Fast-Charging Dedicated Pin Design

For 60W / 100W / 240W (USB PD)

Key optimization points include:

• 🔌 Power PINs widened or paralleled

• 🔥 Reduce contact resistance (≤30 mΩ)

• 🧠Built-in E-Marker Chip (Type-C)

• 🛡 Increased gold plating thickness

六、PIN Connection and Internal Wiring

七、Reliability and Lifetime Testing

Professional manufacturers typically perform the following tests:

• Insertion/Withdrawal Life Test (≥10,000 cycles)

• Contact Resistance Variation Test

• High-Temperature and High-Humidity Aging

• High-Current Electrical Aging
